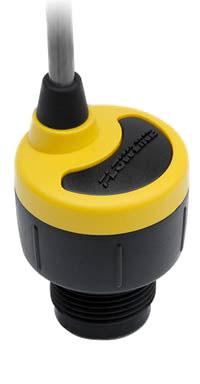

EchoPod is the perfect solution for replacing those old floats and sensors that just don't work in dirty, sticky media. In small tanks (49.2" or less), Echo Pod is a general purpose sensor designed to replace non-contact switches, controller capabilities, and transmitter capabilies in a single multi-purpose instrument. Its polycarbonate enclosure is liquid-resistant, flame-retardant, and corrosion-proof to protect the innovative Flowline technology within. EchoPod is easily configurable using WebCal, a computer software that can be downloaded for free from the Flowline main website (see links above).
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
-Specifications-
|
Range: |
49.2" (1.25 m) |
Temp comp: |
Automatic over range |
Accuracy: |
0.125" (3mm) |
Temp: |
F: 20-160 , C: -7-60 |
Resolution: |
0.019" (0.5mm) |
Pressure: |
Atmospheric |
Beam width: |
2" (5 cm) |
Enclosure: |
NEMA 4X encapsulated, corrosion resistant, & submersible |
Dead band: |
2" (5 cm) |
Enclosure material: |
PC/ABS FR |
Supply Voltage: |
24 VDC (loop) |
Strain relief material: |
Santoprene |
Loop resistance: |
400Ω max |
Transducer material: |
PVDF |
Consumption: |
35 mA maximum |
Cable length: |
48" (1.2m) |
Signal outout: |
4-20 mA, two-wire (when loop powered) |
Cable jacket material: |
Polyurethane |
Contact type: |
(4) SPST relays 1A |
Process mount: |
1" NPT (1" G) |
Loop fail-safety: |
4 mA, 20 mA, 21, mA, 22 mA, or hold last |
Mount gasket: |
Viton |
Relay fail-safety: |
Power loss: Hold last |
Classification: |
General purpose |
Hysteresis |
Selectable |
Approvals: |
CE |
Configuration: |
WebCal® PC Windows software interface |
|
|
